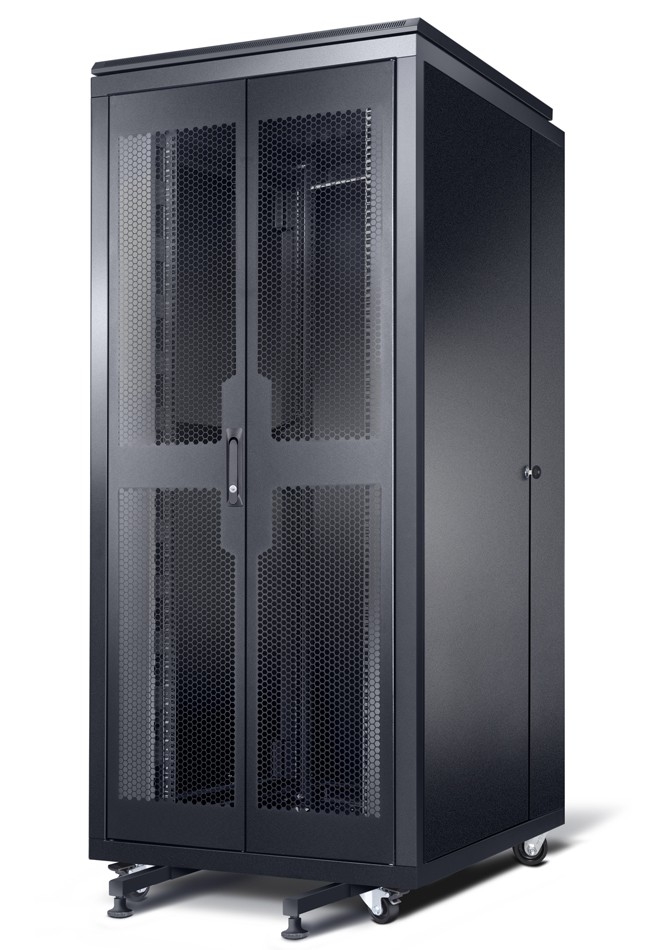

Комуникационен шкаф Formrack 19″ Server rack 36U 800/1000mm, perforated front and back door, openable locking sides, height: 1653 mm, loading capacity: 1000kg (does not include castor/feet group)

Наличност: с поръчка

Размери: 80, 100, 175.9 (X,Y,Z)

Тежест: 149кг.

Предназначено за: за специализирана употреба

Тип
Server rack
Размер, inch
19"
Форм-фактор
36U
Широчина, mm
800 mm
Дълбочина, mm
1000 mm
Височина, mm
1653 mm
Вътрешни размери, mm
Inside Height: 1603 mm
Максимален товар, kg
1000 kg
Тегло, kg
105 kg
Предни врати, тип
Perforation (vertically double open perforated structure), made by DKP sheet (1.2 mm steel), openable, lockable and easily removable
Странични панели
Openable, lockable and easily removable, made by DKP sheet (1.2 mm steel). The main frame is 1.5 mm and corner profiles have nested structure
Заден панел
Openable, lockable and easily removable; vertically double open perforated structure, made by DKP sheet (1.2 mm steel)
Заключване
Four sides
Включени аксесоари
4x 19" mounting profiles with 2 mm sheet thickness and these profiles can move deep within the cabinet. Mounting profiles have U markings that facilitate the mounting process. Not included castor/feet group (option of using wheeled and fixed legs)
Брой секции
Single-section
Слот за вентилатори
Ventilation is provided by cooling units with 2,4 or 6 fans
Стандарти
ROSH, CE, EN 61587-1
Цвят
Black (Painted by impact-resistant, high strength, electrostatic Ral 9005 texture black color)
Други
At the top part, there is a protective structure that prevents to the entrance of dust and foreign matters. At the bottom and top parts, there is a dust-protected brushed cable entry. The cabinet has a balance foot against tilting
