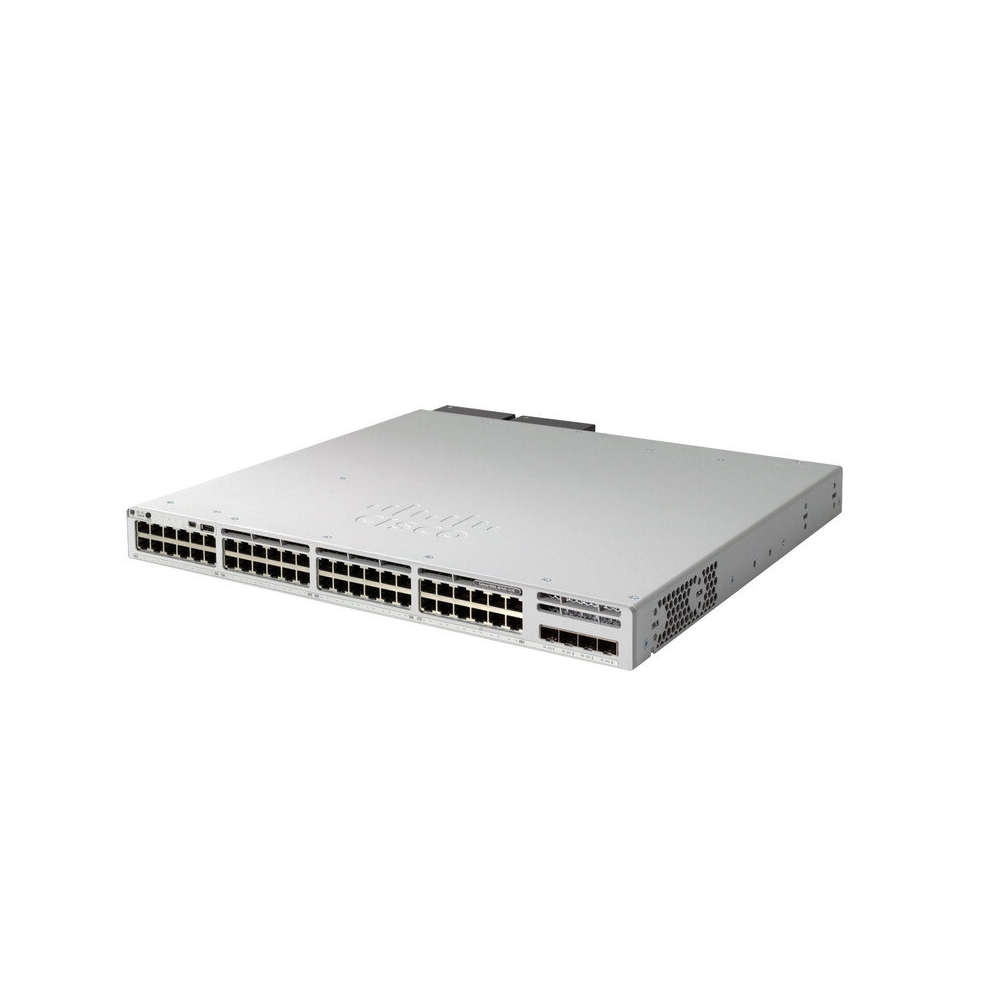

Комутатор Cisco Catalyst 9300L 48p data, Network Essentials ,4x10G Uplink

Наличност: с поръчка

Размери: 44.5, 44.9, 4.4 (X,Y,Z)

Тежест: 8.53кг.

Предназначено за: за бизнеса

Суич, тип
Fixed Port
Общ брой портове
52
Основни портове, тип
48x 10/100/1000Base-T, copper
Power Over Ethernet (PoE)
No
Uplink портове
4x10G/1G SFP+
Свободни (10GB) слотове
No
Управление
WebUI is an embedded GUI-based device-management; RMON I and II standards, SNMPv1, v2c, and v3
Stackable
Stackwise-320 (C9300L-STACK-KIT)
Fans
3 field-replaceable fans and support (N+1) redundancy
Захранване
350W AC
Routing
Advanced
Памет (Flash, RAM)
8 GB memory, and 16 GB of flash and external USB 3.0 SSD pluggable storage slot (delivering up to 240GB of storage with an option SSD drive) to host containers
Капацитет за маршрутизиране/превключване, Gbps
176 Gbps; Switching capacity with stacking: 496 Gbps
Пропускателна способност, Mpps
130.95 Mpps; Forwarding rate with stacking: 369.05 Mpps
MAC адреси
32 000
VLAN (брой, стандарти)
VLAN IDs: 4094
QoS
QoS scale entries: 5120, Superior QoS includes granular wireless bandwidth management and fair sharing, 802.1p CoS and (DSCP field classification, Shaped Round Robin (SRR) scheduling, Committed Information Rate (CIR), and eight egress queues per port
L2 мрежови стандарти
IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1x-Re,v IEEE 802.3ad, IEEE 802.3a,e IEEE 802.3af, IEEE 802.3at
IPv6 functionality
Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4- to-IPv6 migration; IPv6 routing entries: 16 000; IPv6 routing (using OSPFv3 and BGPv6), ? IPv6 addressing
Сигурност
Encrypted Traffic Analytics (ETA), AES-256 MACsec/IPSec encryption, Trustworthy solutions built with Cisco Trust Anchor Technologies; Umbrella DNS Integration
Размери (Ш, Д, В), mm
445 x 409 x 44
Опция за монтаж
Rackmount
Други
Задължителен е минимум 3-годишен лиценз DNA Essentials.
