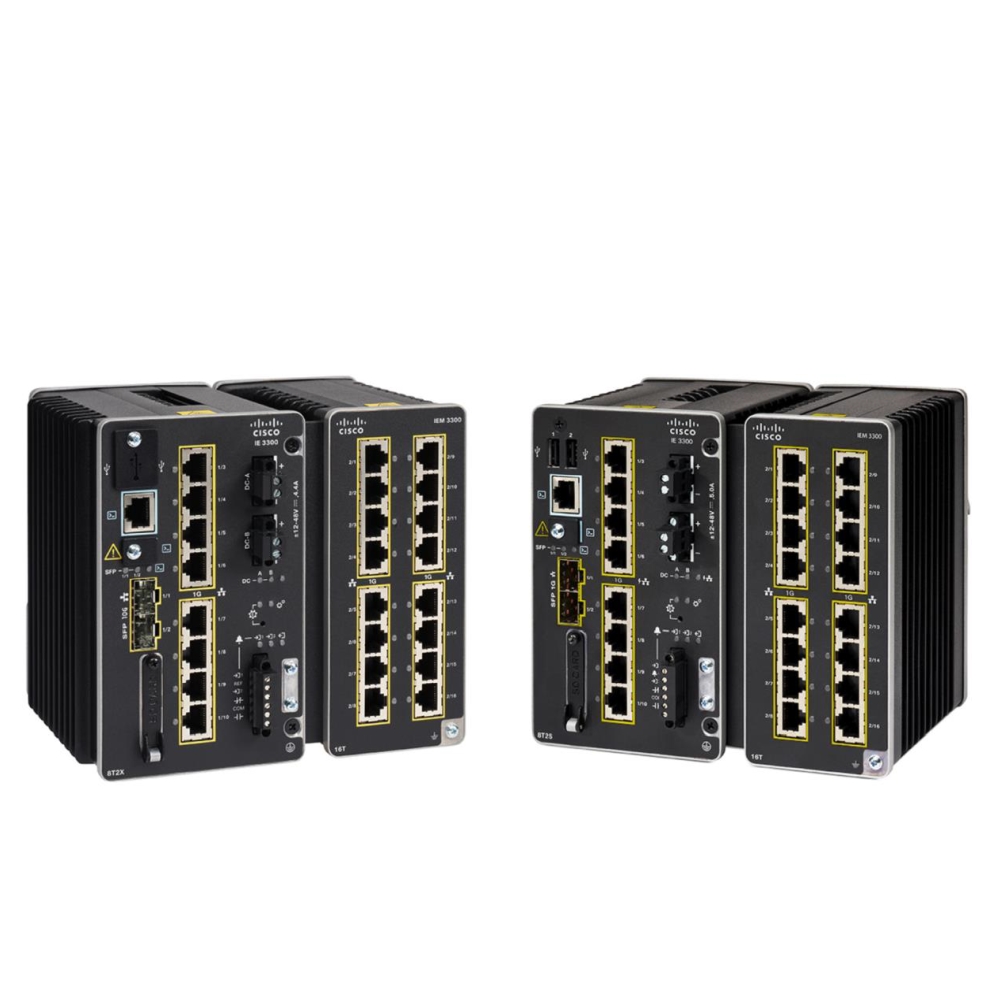

Комутатор Cisco Catalyst IE3300 with 8 GE PoE/PoE+ and 2 GE SFP, Modular, NA

Наличност: с поръчка

Размери: 0, 0, 0 (X,Y,Z)

Тежест: 2.48кг.

Предназначено за: за бизнеса

Суич, тип
Modular
Общ брой портове
10
Основни портове, тип
8x GE PoE+ copper ports (10/100/1000 RJ45 Copper ports)
Power Over Ethernet (PoE)
PoE+; PoE / PoE (+) budget: 240W (base), 360W (with module); IEEE 802.3at
Uplink портове
2x GE SFP ports (100/1000 SFP ports)
Свободни (10GB) слотове
Single or double wide expansion modules add 2 or 3 inches to the system width
Управление
WebUI, MIB, SmartPort, SNMP, syslog, DHCP server, SPAN session, RSPAN, FSPAN, Express setup, NETCONF, RESTCONF
Stackable
–
Fans
Fanless, convection-cooled
Захранване
Redundant DC input voltage: 9.6 to 60VDC, Maximum Input current: 3.8A, Power consumption: 23W
Routing
Layer 3 routing: Inter-VLAN routing, Static routing
Памет (Flash, RAM)
DRAM – 2 GB, Flash [User Accessible] – 1.5 GB, Optional Removable storage: USB, SD card (capacity: up to 4 GB)
Капацитет за маршрутизиране/превключване, Gbps
Line rate for all ports and all packet sizes
MAC адреси
8K
VLAN (брой, стандарти)
voice VLAN, guest VLAN, VLAN: 256; IEEE 802.1q VLAN
QoS
Ingress policing, rate limit, egress queuing and shaping, auto QoS
Сигурност
Port security, 802.1x, DHCP snooping, dynamic ARP inspection, IP source guard, MAC authentication bypass, storm control, SCP, SSH, SNMPv3, TACACS+, RADIUS, MAC address notific., BPDU guard, Access Lists (PACL,VACL,RACL), SUDI 2099, FNF, MACsec 256
Мрежови стандарти
IEEE 802.1d, 802.1p, 802.1s, 802.1w, 802.1x, 802.1ab, 802.3ad, 802.3ah, 802.3x, 802.3, 802.3u, 802.3ab, 802.3z, IEEE 1588v2, IEEE 802.3af, IEEE 802.3at
Протоколи за индустриална автоматизация
CIP Ethernet/IP, IEEE 1588 PTP v2 (default and power), PROFINET
Работна температура
-40°C to +70°C (40 LFM vented enclosure), -40°C to +60°C (sealed enclosure), -34°C to +75°C (Min. 200 LFM fan or blower-equipped enclosure), +85°C (type tested for 16 hours)
Размери (Ш, Д, В), mm
91 x 135 x 152 mm
Опция за монтаж
DIN rail
Други
Network Advantage (IP routing Protocols – OSPF, BGP, RIP, ISIS, EIGRP, PBR, VRRP, HSRP; Virtualization – Vrf-lite, IP Multicast), Console ports: 1 RS-232 (via RJ-45), 1 USB Mini Type B; Layer 2 switching
